Quick Air Blast Freezer
Modular batch freezing with uniform airflow.

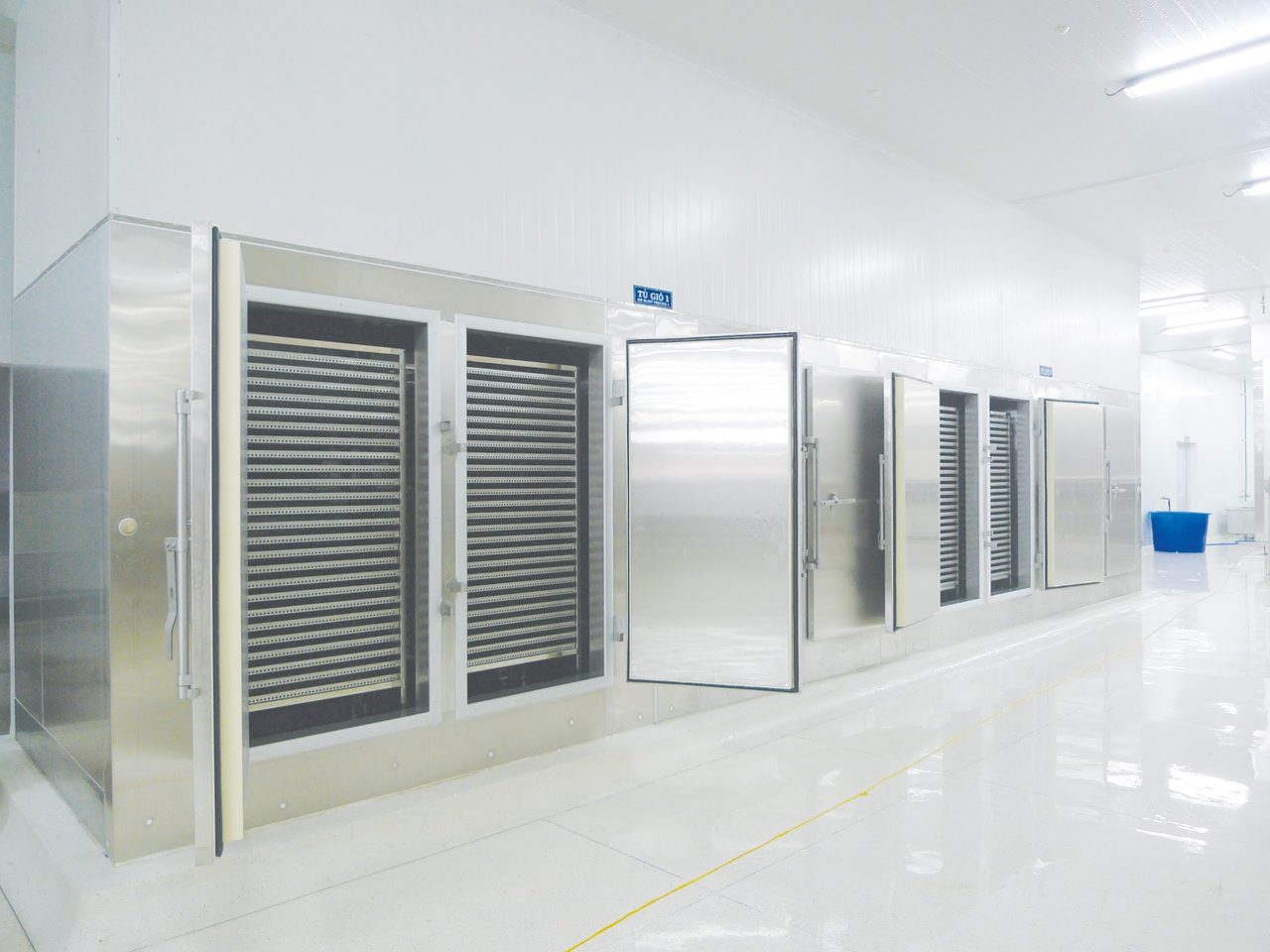

In the Quick Air Blast Freezer, products sit on rack shelves directly in front of the freezing fans, and chilled air is distributed evenly through the cabinet for uniform quality anywhere inside. Insulated stainless steel panels with polyurethane foam, tightly sealed doors and a sealed floor keep the cold in and water out. Modular units connect in any configuration to match batch sizes and product types.
Consistent freezing quality
Chilled air is distributed evenly to every shelf in the cabinet.
Customizable capacity
Modular units connect in any configuration for different batch sizes.
Sealed and insulated
Polyurethane-insulated stainless panels, sealed doors and floor.
Fast pull-down
Rapid temperature drop to the product core.
What the QABF-series freezes
For breaded products, meat patties, sausages, dumplings and other foods on trays.
Breaded shrimp
Meat patties
Sausages
Dumplings
Technical specifications
| Description | QABF250 | QABF500 |
|---|---|---|
| Nominal freezing capacity (kg/h) ¹ | 250 | 500 |
| Refrigeration at Te ≈ –40 °C (kW) | 42 | 78 |
| Trolley / rack configuration | 4 racks (16 tiers/rack) | 4 racks (21 tiers/rack) |
| Length (mm) | 5,450 | 6,200 |
| Width (mm) | 2,450 | 2,450 |
| Height (mm) | 2,450 | 2,600 |
¹ Nominal capacity basis: Variable products on trays, core inlet/outlet +10 °C / –20 °C. Parameters subject to change without prior notice.
Not sure which size fits your plant?
Tell us your product, size and capacity. A GLORY engineer replies within one working day.
