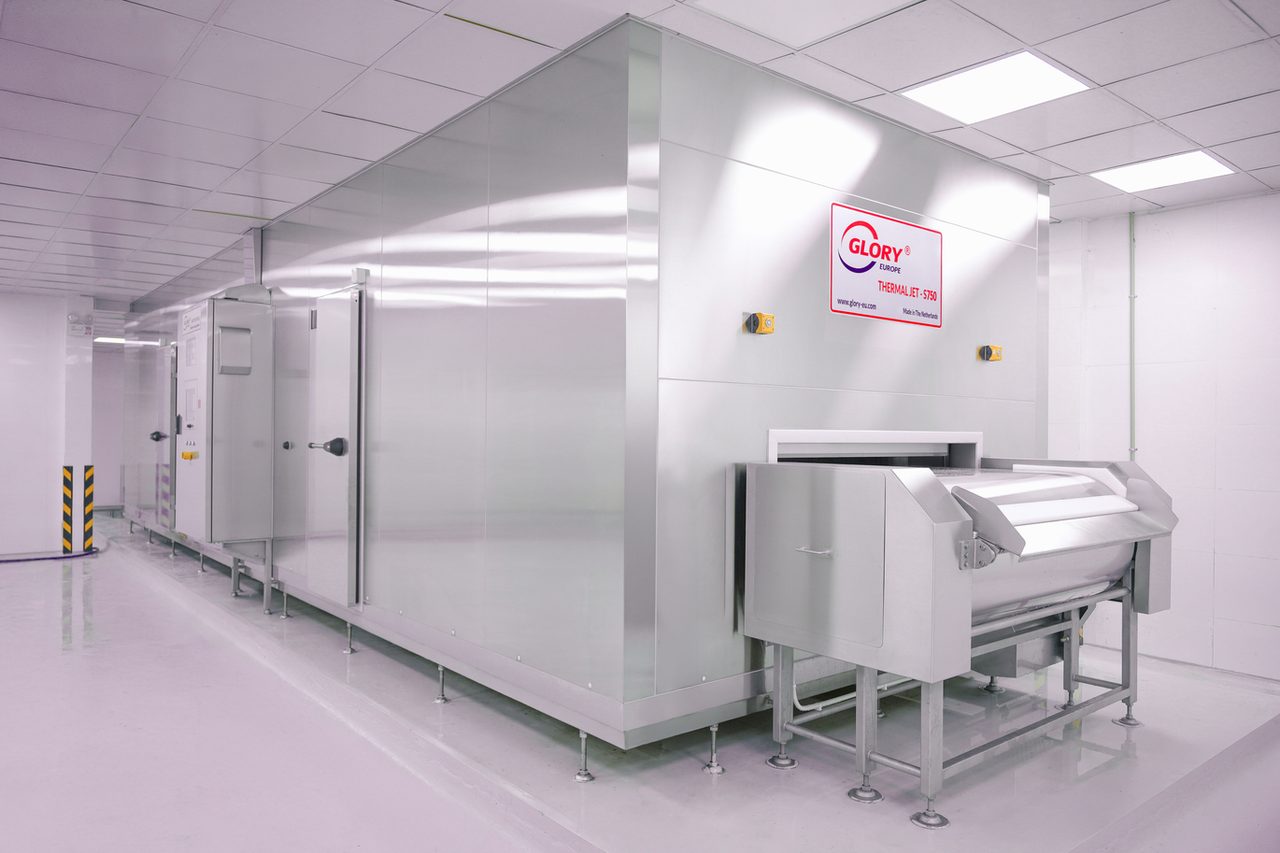

Thermal Jet® · S-series

Steel Belt IQF Freezer

Name: Steel Belt IQF Freezer – Thermal Jet® · S-series
Brand: GLORY

Maximum product quality. Minimum total cost of ownership.

A dual-impingement system freezes the product from above with high-velocity air jets while impingement jets cool the underside of a food-grade stainless steel belt with outstanding thermal conductivity. Its strength and dimensional stability give a long service life with minimal maintenance. Designed for soft and marinated products, the S-series minimizes freezing loss, preserves product quality and runs for more than 20 hours without defrosting.

500–2,000

kg/h

> 20 h

without defrost

–45 °C

Te design

Request a quote Datasheet (PDF)

Impingement freezing

High-velocity air impingement delivers rapid, uniform freezing for superior quality and yield.

Minimal freezing loss

Ideal for soft and marinated products, with minimal dehydration and reduced belt clogging.

Mark-free belt

The stainless steel belt preserves delicate surfaces with minimal carry-over.

Non-stop operation

Over 20 hours of continuous operation without defrosting.

Typical applications

What the Thermal Jet® · S-series freezes

Ideal for a wide variety of soft seafood, poultry, meat, marinated and value-added products.

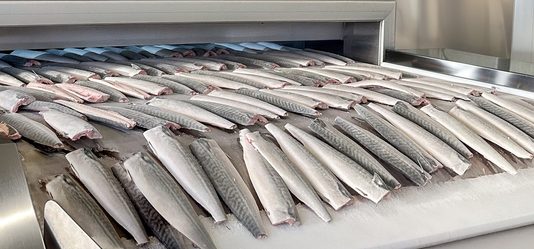

Mackerel fillet

Pangasius fillet

Squid rings

Scallop meat

Technical data

Technical specifications

Description	S500	S750	S1000	S1200T	S1500T	S2000T
Nominal freezing capacity (kg/h) ¹	500	750	1,000	1,200	1,500	2,000
Refrigeration at Te ≈ –45 °C (kW)	95	135	170	200	255	320
Freezer configuration	Single-line	Single-line	Single-line	Dual-line	Dual-line	Dual-line
Belt type	Food-grade stainless steel plate belt
Length (mm)	13,050	18,700	20,400	14,850	18,700	20,400
Belt width (mm)	1200 · 1500 · 1800
Height (mm)	3,330
Continuous uptime without defrost	> 20 h
