Compact IQF Freezer
Compact modular freezing. Full-scale IQF performance.

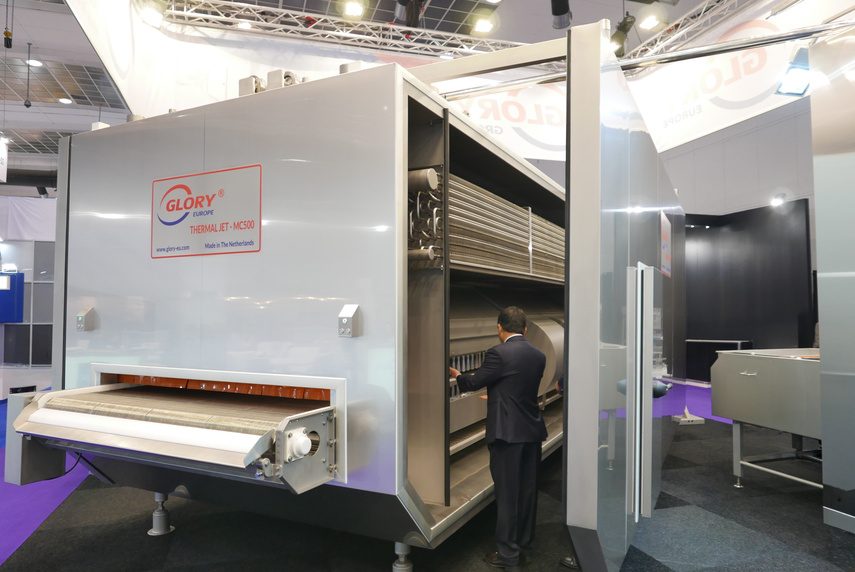

The same advanced impingement technology as the Thermal Jet® M-series, on a compact modular platform. The MC-series is plug-and-run: it starts producing soon after connection, turning installation time into production time. Smaller, lighter and more flexible, it suits smaller batches, limited floor space or quickly adding capacity to an existing line — with simplified maintenance and sanitation.
Plug and run
Starts producing soon after connection — installation time becomes production time.
Compact footprint
Smaller and lighter, for plants with limited floor space.
Line extension
Add capacity to an existing line quickly, or run it standalone.
M-series impingement
The same fast, uniform impingement freezing as the M-series.
What the Thermal Jet® · MC-series freezes
Also suitable for poultry, meat, vegetables, fruits and prepared foods.

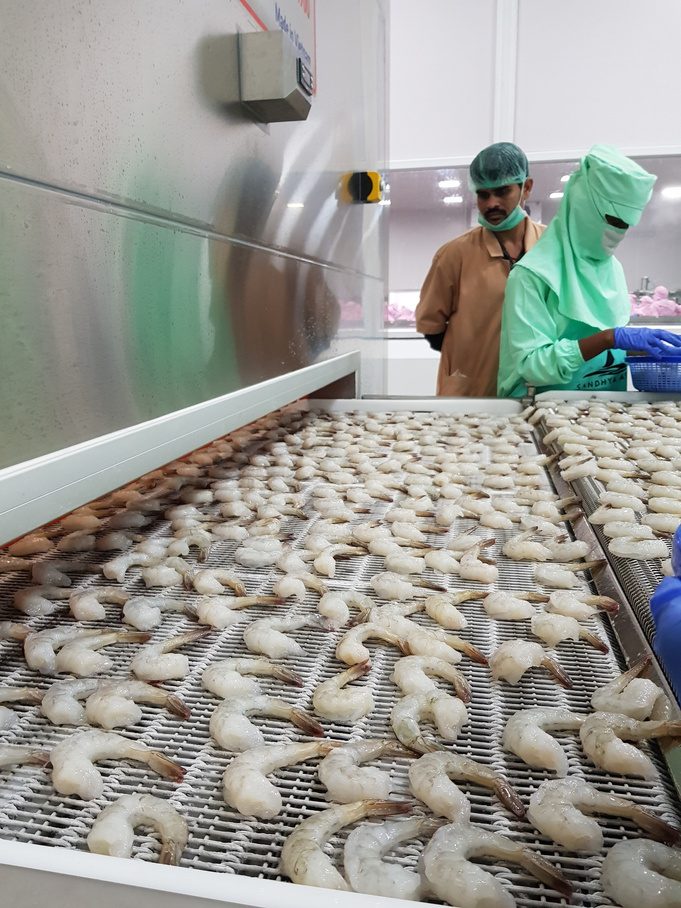

Individual shrimp
Tempura shrimp
Shrimp in boxes
Packed salmon loin
Technical specifications
| Description | MC250 | MC500 |
|---|---|---|
| Nominal freezing capacity (kg/h) ¹ | 250 | 500 |
| Refrigeration at Te ≈ –45 °C (kW) | 50 | 90 |
| Belt type | SUS 304 mesh belt | |
| Length (mm) | 4,900 | 7,600 |
| Belt width (mm) | 1000 · 1500 · 1800 | |
| Height (mm) | 2,800 | |
| Continuous uptime without defrost | > 20 h | |
¹ Nominal capacity basis: HLSO shrimp, 16–20 pcs/lb, core inlet/outlet +10 °C / –20 °C. Parameters subject to change without prior notice.
